Đầu phun canon IPF 600-605-610-700-710-750-755

Đầu phun canon IPF 600, hàng chính hãng, Full box nguyên đai nguyên kiện có bảo hành khi mua đầu in canon IPF 600 kèm mực chuyên dùng canon.

Mã SP:Mới 100%, Chính hãng
Giá bán:10,500,000 vnđ Đặt mua

Đầu phun canon IPF 600, hàng chính hãng, Full box nguyên đai nguyên kiện có bảo hành với điều kiện mua kèm mực chuyên dùng cho máy canon IPF 600

Hướng dẫn lắp đặc, bảo dưởng đầu in canon IPF600 một cách an toàn nhất cho máy in của bạn hoạt động với tuổi thọ đầu phun cao nhất.

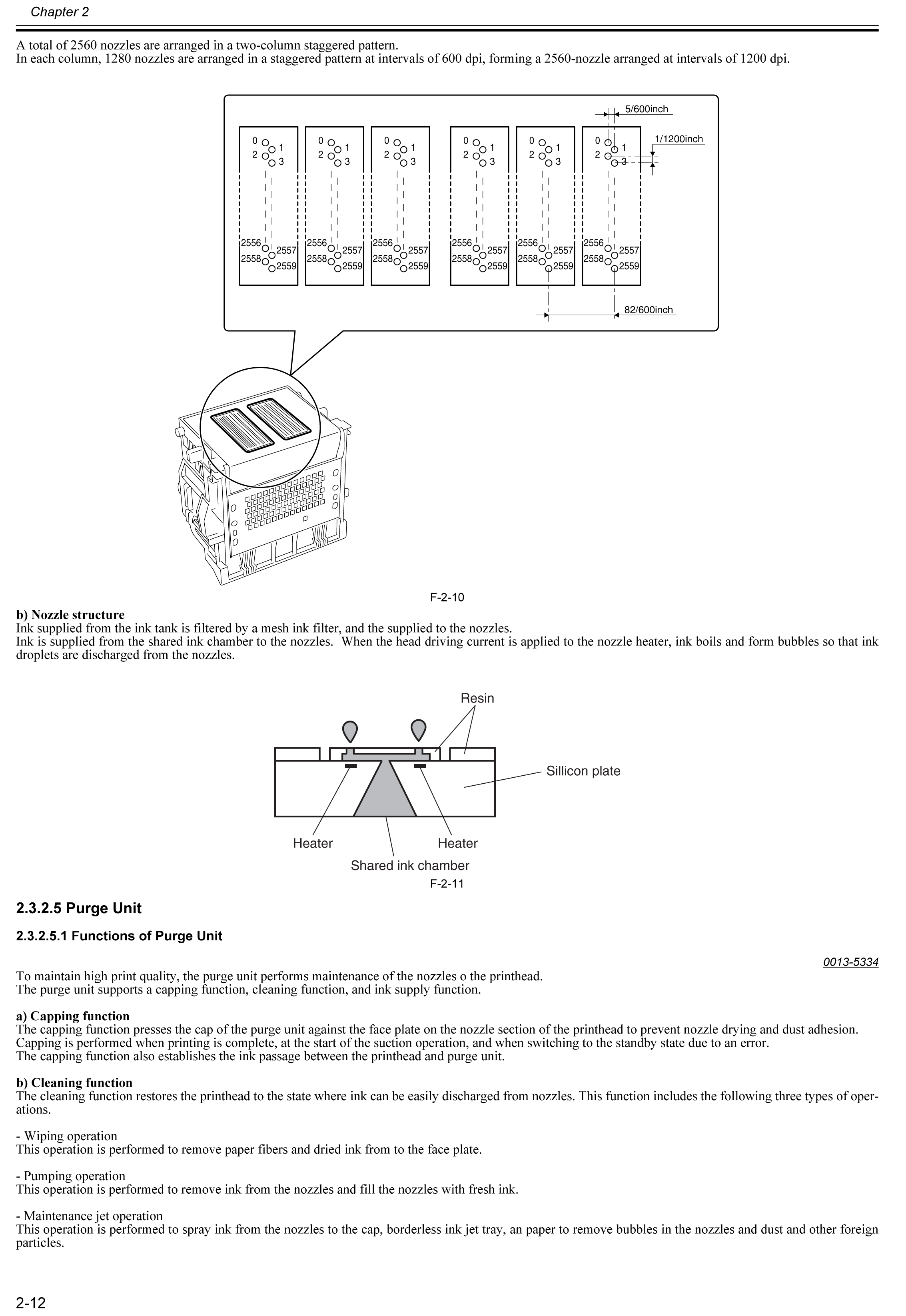

Đầu phun máy in Canon IPF 600

Các lỗi thường gặp của máy in canon IPF 600

Đầu in canon IPF 600

03010000-200F Too large media

03016000-2010 Skewed media

03130031-2F24 Cutter movement timeout

03870001-2015 Cutting failure

03010000-2017 Media right edge not detected

03010000-2018 Media left edge not detected

03862000-2E09 Roll paper running out

03010000-2E19 Media feeding error

03010000-2E1A

03010000-2E1D

03060A00-2E0E Auto Roll Feed Unitnot installed

03010000-2E1C Media cannot be ejected

Đầu phun canon IPF 600

Đầu in canon IPF 600

03180101-2E17 Cassette not loaded

03060200-201E Job requiring cassette was received when "NO" is selected for cassette pick-up on MIT

03860002-2E0A Manually fed cut sheet was already loaded even though received data indicated roll media

03060A00-2E00 Roll media was loaded even though the received data indicated roll media.

03861001-2405 Invalid paper position for borderless printing

03861001-2406 Data that does not allow borderless printing was received

03060000-2E14 Width indicated by received data does not match width of paper

03060200-2E03 Cut sheets were not loaded in cassette even though the received data indicated cut sheets

Đầu phun canon IPF 600

03061000-2E15 Media type indicated by data does not match

03060000-2E16 Media type and size indicated by data do not match (cassette only)

03060200-2E0B Manually fed cut sheet was already loaded even though received data indicated cassette

03010000-2E1F Too small media for internal printing was loaded

03810104-2500 No ink (BK)

03810101-2501 No ink (Y)

03810102-2502 No ink (M)

03810103-2503 No ink (C)

03810106-2506 No ink (MBK)

03810106-2507 No ink (MBK2)

03830104-2520 Ink tank not installed (BK)

03830101-2521 Ink tank not installed (Y)

Đầu phun canon IPF 600

03830102-2522 Ink tank not installed (M)

03830103-2523 Ink tank not installed (C)

03830106-2526 Ink tank not installed (MBK)

03830106-2527 Ink tank not installed (MBK2)

03830204-2540 Ink tank ID error (BK)

03830201-2541 Ink tank ID error (Y)

03830202-2542 Ink tank ID error (M)

03830203-2543 Ink tank ID error (C)

Đầu in canon IPF 600

03830206-2546 Ink tank ID error (MBK)

03830206-2547 Ink tank ID error (MBK2)

03830304-2560 Ink tank EEPROM error (BK)

03830301-2561 Ink tank EEPROM error (Y)

03830302-2562 Ink tank EEPROM error (M)

03830303-2563 Ink tank EEPROM error (C)

03830306-2566 Ink tank EEPROM error (MBK)

Đầu phun canon IPF 600

03830306-2567 Ink tank EEPROM error (MBK2)

03810204-2580 Remaining ink low (BK)

03810201-2581 Remaining ink low (Y)

03810202-2582 Remaining ink low (M)

03810203-2583 Remaining ink low (C)

03810206-2586 Remaining ink low (MBK)

03810206-2587 Remaining ink low (MBK2)

03800100-2800 No printhead
Đầu in canon IPF 600

03800200-2802 Incorrect printhead was installed

03800400-2803 Printhead EEPROM error

03800300-2801 Unable to correct printhead DI

03800500-280C Many nozzles on printhead did not inject ink

03841201-2816 Maintenance cartridge EEPROM error

03841201-2817 Maintenance cartridge ID error

03841101-2818 Maintenance cartridge not installed

Đầu phun canon IPF 600

03841001-2819 Maintenance cartridge tank full

01841001-281A Remaining capacity of maintenance cartridge is insufficient to execute each cleaning

03010000-2820 Unable to adjust printhead registration

03010000-2821 Unable to adjust band

Code StatusChapter 8

8-3

8.4 Sevice Call Table

8.4.1 Service call errors 0013-2081

Codes correspond to the numbers shown on the DIPLAY in the service mode.

T-8-4

Đầu in canon IPF 600

03010000-2822 Unable to adjust eccentricity

03010000-2823 Printhead check error

03800500-2F2F No ink ejection detection error

03800500-2F30 No ink ejection detection position adj

03010000-2822 Unable to adjust eccentricity

Đầu phun canon IPF 600
03010000-2823 Printhead check error
03800500-2F2F No ink ejection detection error
03800500-2F30 No ink ejection detection position adjustment error
03130031-2F32 Multi sensor faulty
03010000-2F33 Unable to adjust due to transparent media
03130031-2F25 Unable to detect CR motor HP
03130031-2F16 Mist fan error
03130031-2F3A Ink supply valve motor error
03130031-2F2A Feed roller HP sensor error
03130031-2F17 Platen fan error

Đầu in canon IPF 600
03130031-2F28 Pump encode/Pump cam sensor error
03130031-2F20
03130031-2F26 Carriage cannot operate
03130031-2F26 Carriage cannot operate
03130031-2F27 Carriage movement timeout

Đầu phun canon IPF 600
03030000-2E21 IEEE1394 interface error
03130031-2F22 Pump movement timeout
03130031-2F2B Feed roller cannot operate
03130031-2F2D Cassette cannot operate
03130031-2F23 Pump cannot operate
03130031-2F2E Roll movement timeout
03130031-291B Lift movement timeout
03130031-2E23 Cutter unit failure
03130031-2F13 A/D converter external trigger output stopped
03130031-2F14 Unable to write in ASIC register

Đầu in canon IPF 600

E141-4046 Recovery system rotation count reached 50,000. ERROR Exxx-xxxx
Call For Service E144-4047 Feed system counting error
E146-4001 Borderless/idle ejection/ mist recovery count full
E194-404A No ink ejection counting error
E161-403E Abnormally high printhead temperature

Đầu phun canon IPF 600
E196-4040 Checksum error
E196-4041 Flash memory clearing error
E196-4042 Flash memory write error
E196-4045 Engine EEPROM write error
E196-4049 Transfer ROM data type error
E196-4042 MIT Data transfer error
E198-401C RTC error
E198-401D RTC low battery error
E198-401E RTC clock stopped

Đầu phun canon IPF 600
